corrosão soldada 2x2 de Mesh Anti do fio do comprimento de 30m para a construção
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | FUHANG |
| Certificação: | ISO9001 |
| Número do modelo: | 2" x 2" abertura |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 medidor quadrado |
|---|---|
| Preço: | 1-30 Square Meter $5/Square Meter |
| Tempo de entrega: | 5-8 dias do trabalho |
| Termos de pagamento: | L/C, T/T |
| Habilidade da fonte: | 50000 dias quadrados de /15 do medidor |
|
Informação detalhada |
|||
| Nome: | rede de arame soldada | Nome do produto: | 2" x 2" rede de arame soldada de aço inoxidável de abertura |
|---|---|---|---|
| Forma do furo: | Quadrado | Aplicação: | Rede de arame da construção, cerca Mesh, ponte, cerca do jardim |
| Tipo: | Malha soldada | Abertura: | 2" x 2" abertura |
| Comprimento: | 30m | Uso: | Proteção, construção, agricultura, construção, jardim |
| Largura: | 0.5-2m | Embalagem: | Papel impermeável, pálete, no rolo |
| Característica: | Antiferrugem, anticorrosivo | ||
| Realçar: | 2x2 soldou a rede de arame,FUHANG soldou a rede de arame,rede de arame de 30m |
||
Descrição de produto

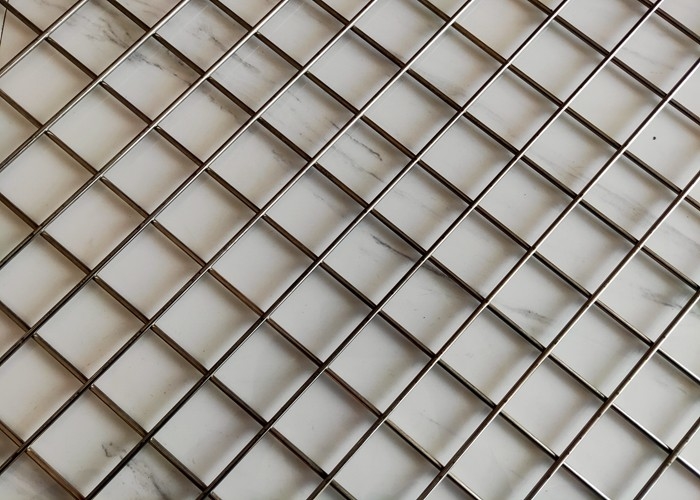

T-304/316 2" x 2" Opening Stainless Steel Welded Wire Mesh for Protection
Welded wire mesh specifications are commonly used in a wide array of industrial and non-industrial applications, including animal caging, critter and varmint control, agricultural use, air vents, basket fabrication, food applications, aviary and bird screen, industrial separation fan and machine guards, security retention, basket fabrication, industrial separation and soffit screens.
Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications. Our company specializes in supplying high quality stainless steel welded wire mesh.
We can produce stainless steel welded wire mesh with apertures ranging from 4 inches to 1/4 inches. The following is the data about the 2 inch stainless steel welded wire mesh:
| Mesh | Construction Type | Wire Diameter | Width of Opening | % of Open Area | Weight |
| 2 in. Open | Welded | 0.250 in | 1.750 in | 76.56 % | 2.066 lb/ft² |
| 0.192 in | 1.808 in | 81.72 % | 1.215 lb/ft² | ||
| 0.187 in | 1.813 in | 82.17 % | 1.152 lb/ft² | ||
| 0.162 in | 1.838 in | 84.46 % | 0.864 lb/ft² | ||
| 0.148 in | 1.852 in | 85.75 % | 0.720 lb/ft² | ||
| 0.135 in | 1.865 in | 86.96 % | 0.599 lb/ft² | ||
| 0.120 in | 1.880 in | 88.36 % | 0.473 lb/ft² | ||
| 0.105 in | 1.895 in | 89.78 % | 0.362 lb/ft² | ||
| 0.080 in | 1.920 in | 92.16 % | 0.210 lb/ft² | ||
| 0.063 in | 1.937 in | 93.80 % | 0.130 lb/ft² |
We mainly provide stainless steel welded wire mesh made of stainless steel 304, 316, and 201. Among them, T-304 and T-316 are the two most important materials.
| T304 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) |
Maximum Nitrogen (N) |
|
0.08 %
|
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
18.00 to 20.00 % |
8.00 to 10.50 % |
0.10 % |
| 304 stainless steel is the most widely used chromium-nickel stainless steel. As a widely used steel, it has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; it has good hot workability such as stamping and bending without heat treatment. Hardening phenomenon (use temperature -196℃～800℃). It is resistant to corrosion in the atmosphere. If it is an industrial atmosphere or heavily polluted area, it needs to be cleaned in time to avoid corrosion. It is suitable for food processing,storage and transportation. Has good processing properties and weldability. | |||||||
| T316 Stainless Steel-Standard Chemical Composition | |||||||
| Maximum Carbon (C) | Maximum Manganese (Mn) | Maximum Phosphorus (P) | Maximum Sulphur (S) | Maximum Silicon (Si) | Chromium (Cr) | Nickel (N) | Mo |
| 0.08 |
2.0 %
|
0.045 %
|
0.03 %
|
1.00 %
|
16.00 to 18.00 % |
10.00 to 14 % |
2.0 to 3.0 % |
Like virtually all wire mesh and wire cloth, stainless steel welded wire mesh lends itself for use in architectural, agricultural, commercial and industrial applications. Here are a handful of popular uses for T-304 stainless steel and T-316 stainless steel welded wire mesh:
- Infill panel & railing systems
- Industrial fan & machine guards
- Security enclosures
- Animal retention (cages)
- Small critter control
- Decorative signage
- Room dividers
- Wall cladding
- Ceiling panels
- Air vents & soffit screens
- Basket fabrication
- Food applications
- Racking & storage
- Aviary & bird screen
- Industrial separation
